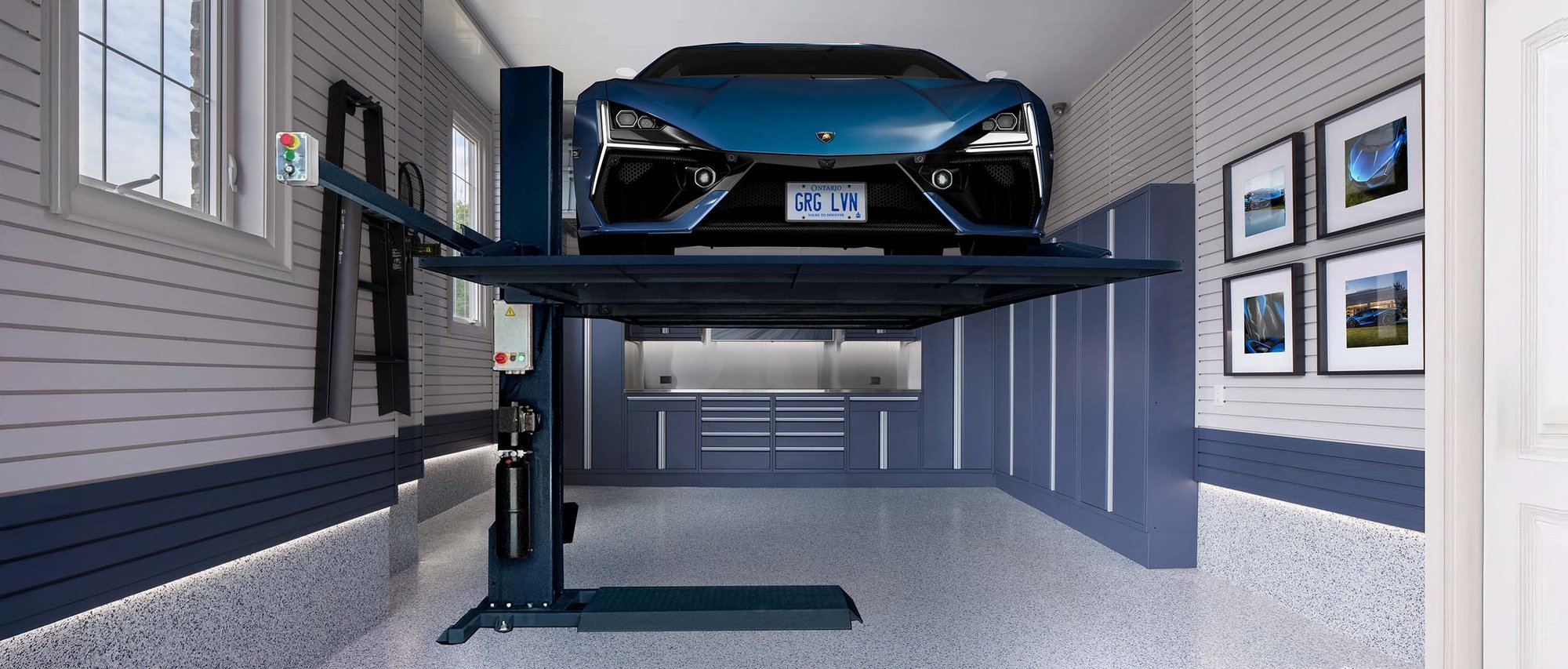

DOUBLE YOUR PARKING SPACE WITH A SINGLE-POST PLATFORM LIFT

Garage Living installs high-quality single-post platform lifts for residential garages. Instantly double your parking capacity without the expense of a major renovation or off-site storage. By utilizing unused vertical space, you can safely store a second vehicle, showcase a summer car, or secure off-season storage, all while maintaining a clean, designer look.

We offer our 5,000 lbs Single Post Full Platform Parking Lift with these premium features:

  • 5,000 lbs lifting capacity

  • Fully enclosed runway for a seamless profile

  • Off-season storage

  • Powder-coat finish in Light Grey or Black, Very Fine Matte Textured

  • Electronic locking system with automatic safety locks

  • Single-point push-button control for effortless operation

Choose the single-post platform lift that transforms your garage into the ultimate automotive showcase.



FEATURES & BENEFITS

DESIGNER AESTHETIC: fully enclosed runway and precision machined components complement premium garage interiors.
MINIMAL FOOTPRINT: single-post layout maximizes usable space on either side of the lift.
SAFETY & SECURITY: electronic locking system with automatic safety locks prevents unintended descent and ensures maximum
protection for you and your vehicle.
EFFORTLESS OPERATION: single-point push-button control and electronic locking deliver smooth, reliable performance.

Download our single post car lift brochure (PDF: 1.94 MB)

COMPLIMENTARY DESIGN CONSULTATION

Let’s talk about your garage remodel.

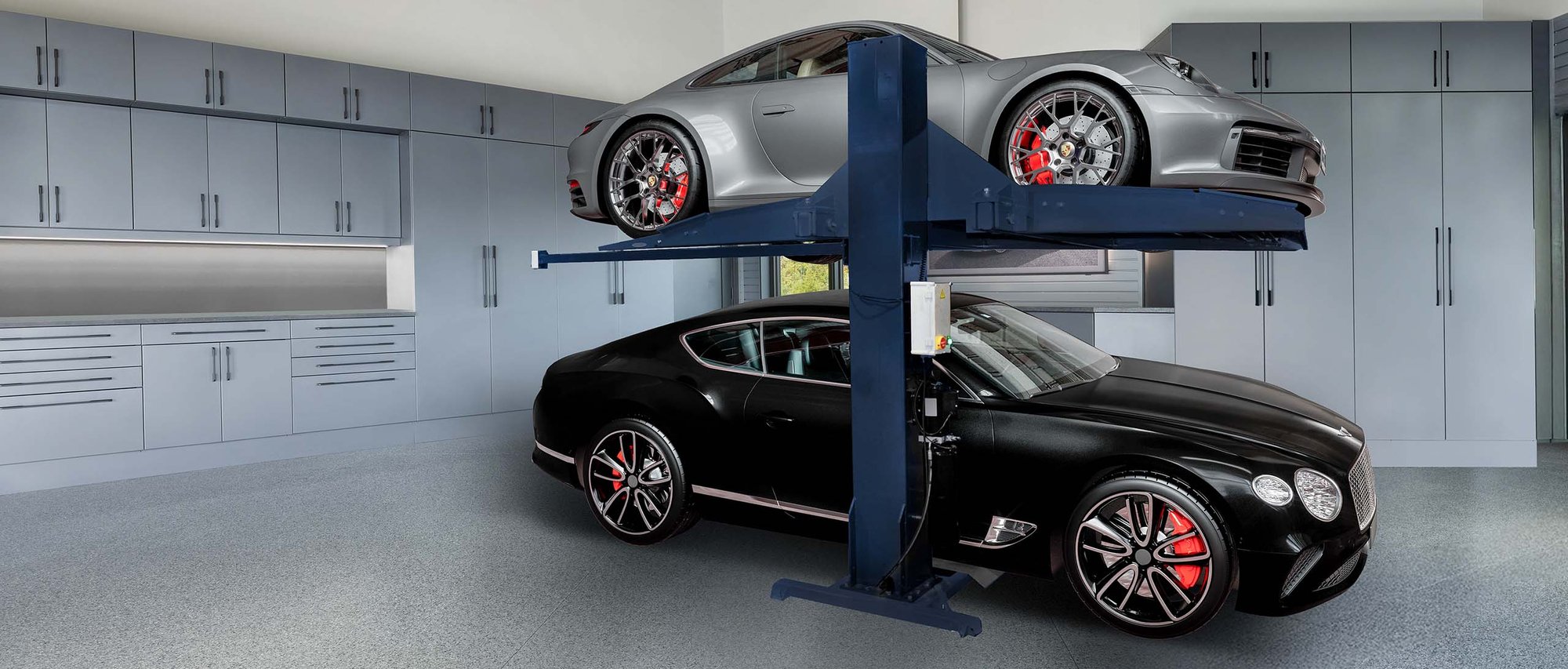

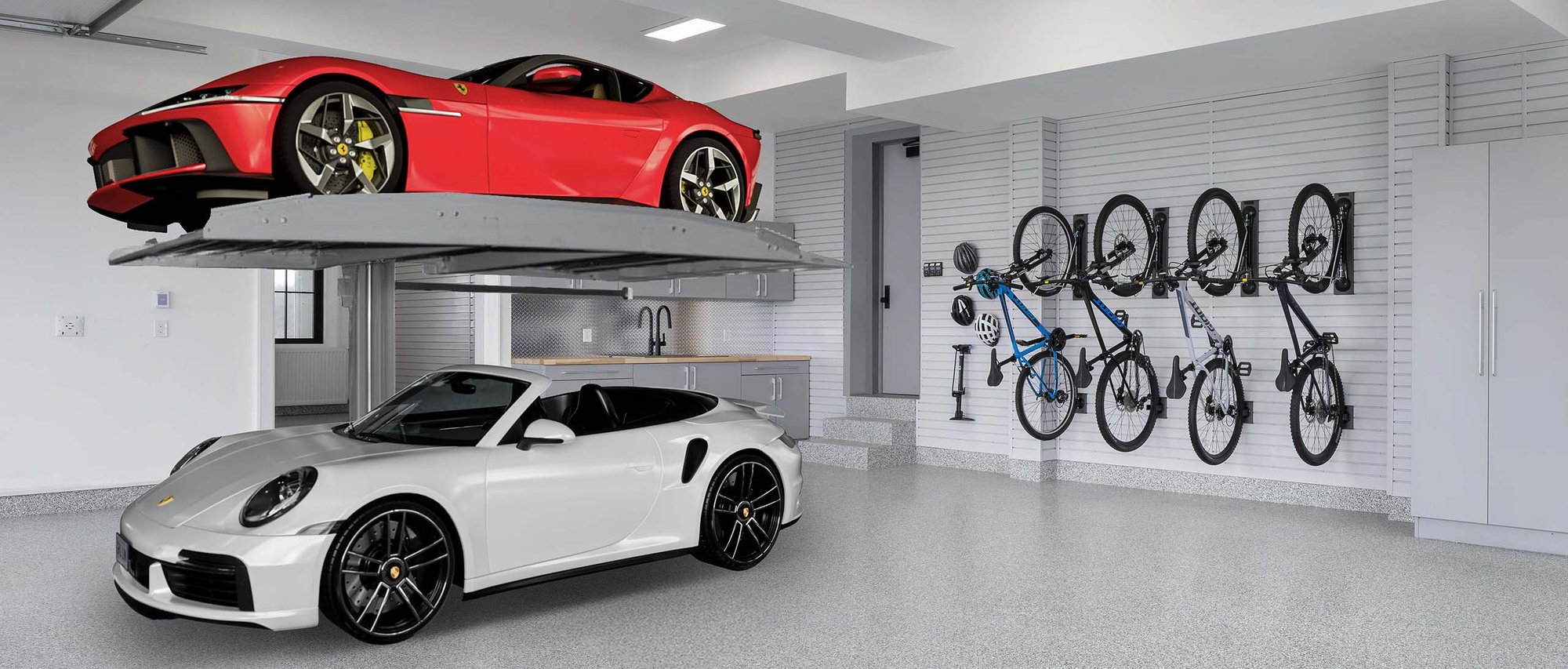

CAR LIFT EXAMPLES

Car lift - Black Porsche - Garage Living
single post car lift - Garage Living
single post car lift - Garage Living
single post car lift - Garage Living
Car lift - Classic cars - Garage Living
Double car lift - Garage Living

SPECIFICATIONS

CERTIFIED AUTOMOTIVE LIFT 8,000 STANDARD 8,000 STANDARD PLUS/LONG 9,000 STANDARD
Lifting Capacity 8,000 lbs 8,000 lbs 9,000 lbs
Lifting Height 72" 86" 84"
Overall Length
(with approach ramps)		 207 ½" 222" 225 ½"
Overall Length
(without approach ramps)		 176" 190" 193 ⅛"
Overall Width
(with motor)		 115" 115" 131"
Overall Width
(without motor)		 103 ½" 103 ½" 121 ½"
Approach Ramps 36 ¾" 37" 36 ¼"
Runway Width 18 ½" 18 ½" 21 ¾"
Runway Length 165 ½" 180" 184 ½"
Runway Thickness 4 ½" 5" 4 ¾"
Drive Through Width
(outside of tire to outside of tire)		 80 ½" 80 ½" 97"
Clearance Under Runways 68" 81" 79 ¼"
Clearance Between Runways 37 ¾" 38" 39"
Clearance Between Columns 94" 94" 109 ½"
Height of Columns 83" 95 ¾" 97"
Outside Runway to Outside Runway 74 ¾" 75" 79 ½"
Shipping Weight 1,820 lbs 1,920 lbs 2,350 lbs
Power Unit 110 V, 1 hp 110 V, 1 hp 110 V, 1 hp

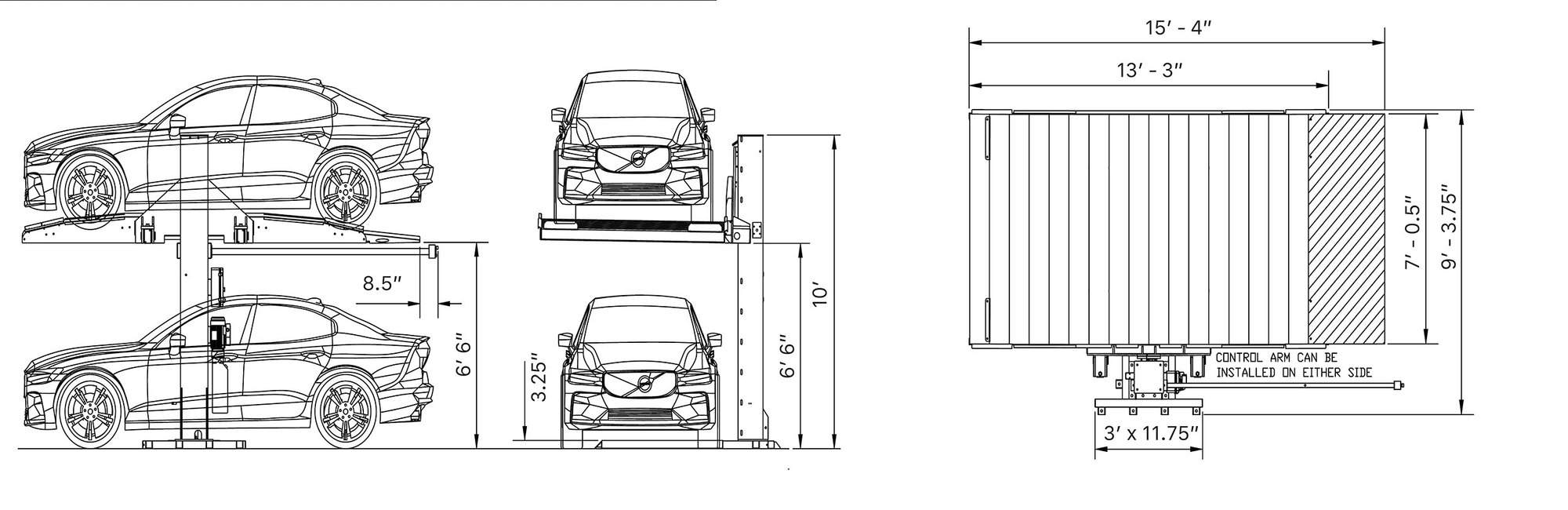

SPECIFICATIONS

Capacity
 5,000 lbs Lifting Height clearance
(Under Runway)		 78″ (6′ 6″)
Overall Length 184” (15′ 4″) Lifting Time 60 seconds
Runway Width 84.5″ (7′ 0½″) Pump & Motor Location Side of column
Runway Length 159″ (13′ 3″) Electronic Locking System Single-point push-button control
Overall Height
 120″ (10′ 0″) Power Requirements 220 V, 20 A, 2 HP / 1.5 kW
Overall Width
 111¾″ (9′ 3¾″) Concrete Required 4″ minimum thickness
Width of Base & Floor Plate 85.25″ (7′ 1¼″) Anchor Bolts Required ¾″ × 6¼″ (0′ ¾″ × 0′ 6¼″)
Drive-Over Height
 3.25″ (0′ 3¼″) Weight 2,250 lbs / 1,023 kg
